MAIN FEATURES:

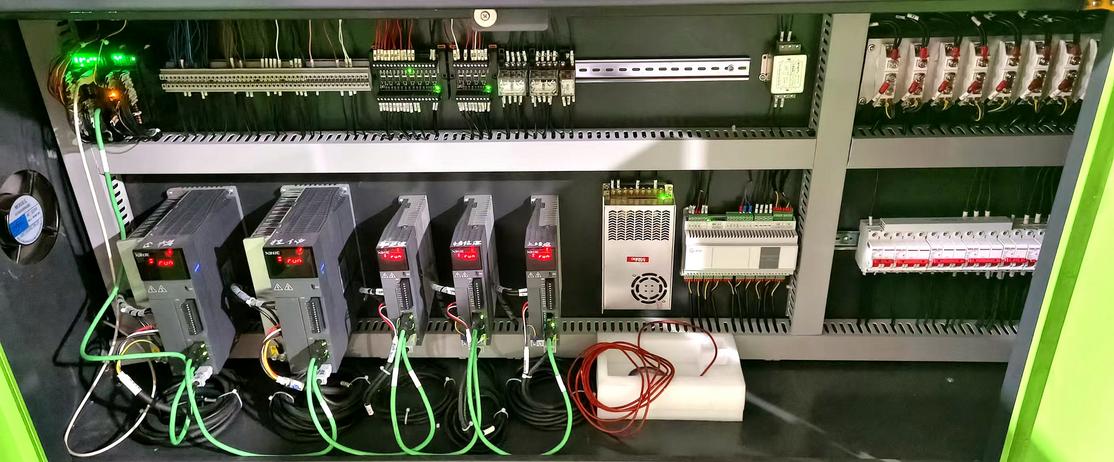

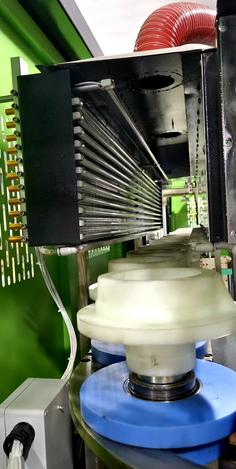

1.) 5 servo-motors control machine actions and preform heating.

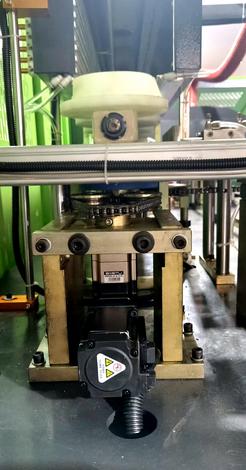

2.) Automatic positioning of preform holders for preform feeding.
3.) Automatic positioning for kettle blowing
4.) Automatic demolding by vacuum chuck.
5.) Additional 3m conveying belt for delivery of final kettles out of the blow molding machine
6.) The operation is controlled by PLC, ensuring accurate and reliable operation.

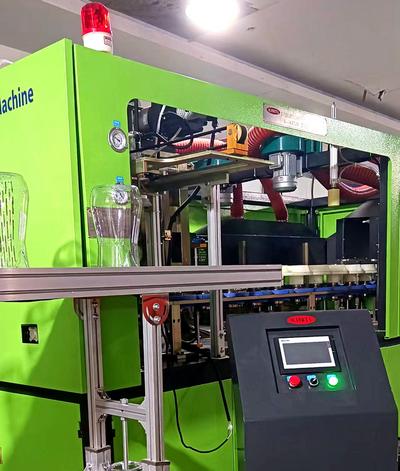

7.) Personalized operation and monitoring of the machine are achieved through the human-machine interface.
MAIN TECHNICAL PARAMETERS:
1. Production Capacity: 120-180 BPH
2. Bottle Blowing Height: 50-320 mm

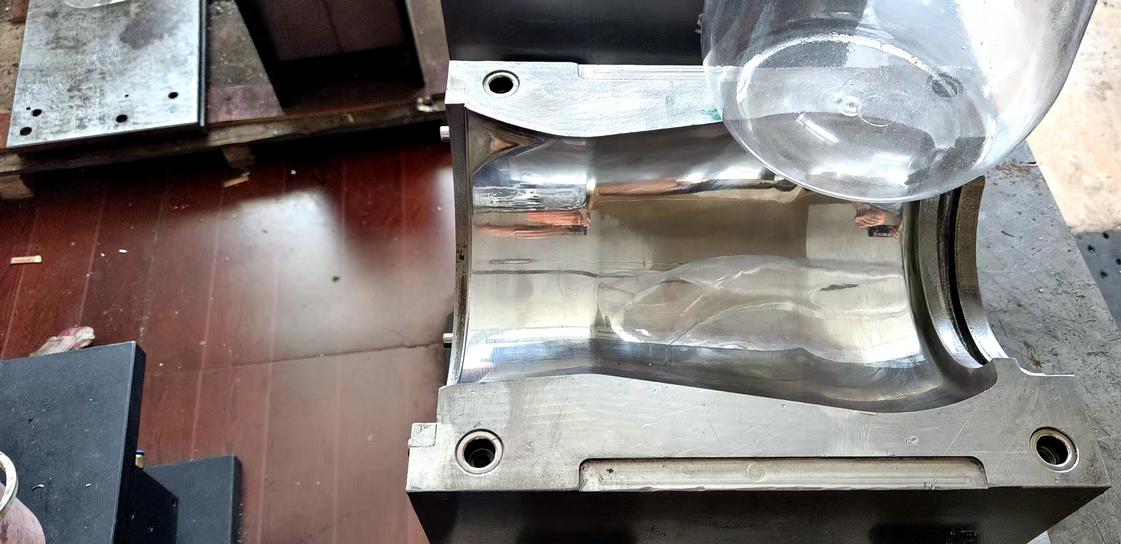

3. Maximum Mold Thickness: 360 mm
4. Installed Power: 105KW
5. Actual Power: Approximately 40KW
6. Power Supply: 380V Three-phase 50/60Hz
7. Working Pressure: 0.7-0.9MPa
8. Blowing Pressure: 1.0-2.0MPa
9. Overall Dimensions:
4350mm (Length) × 2010mm (Width) × 2150mm (Height)
water-filter pitcher blowing machine, máquina de jarra con filtro de agua, آلة إبريق فلتر المياه

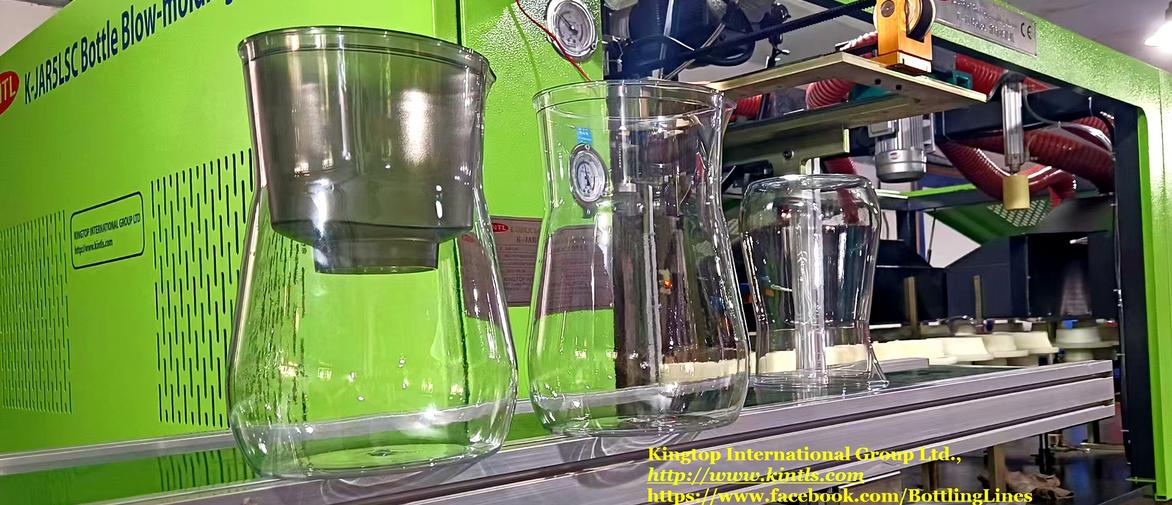

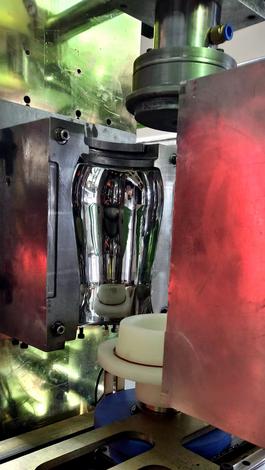

Water-filter pitcher/kettle blow molding machine (TRITAN or PMMA):

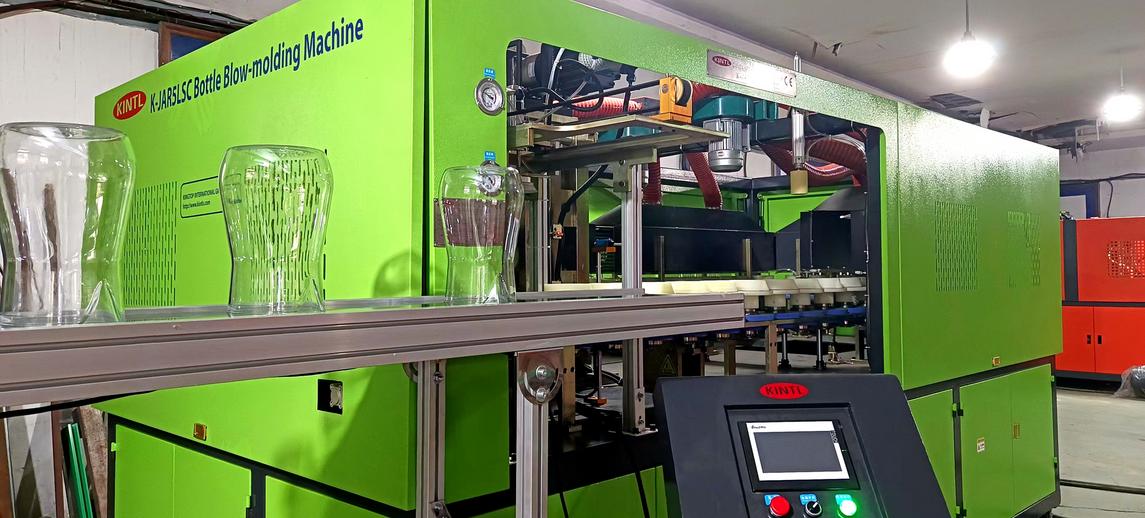

K-JAR5LSC is specially designed and customized for the production of water filter pitchers and kettles (the main body).

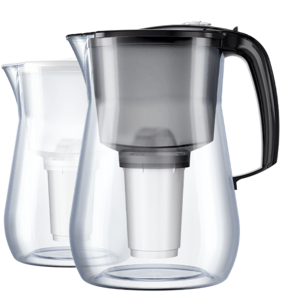

Materials of the pitchers/kettles: TRITAN and PMMA
Except for manual preform-loading, all other production processes are fully automatic.
CE certificate.
