KINGTOP INTERNATIONAL GROUP LIMITED

Whole plant equipment for beverages. Professional and one-stop solution tailored to your beverage production and packing requirement: from PET bottle blow molding to water treatment, bottling and packaging

10L PET bottle

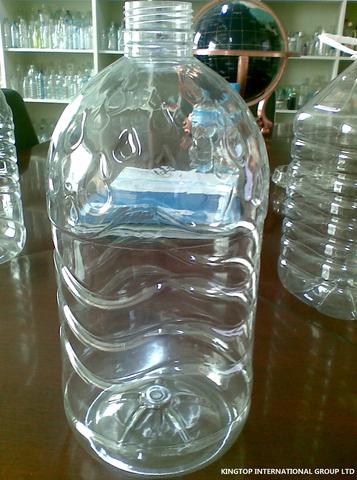

oil bottle

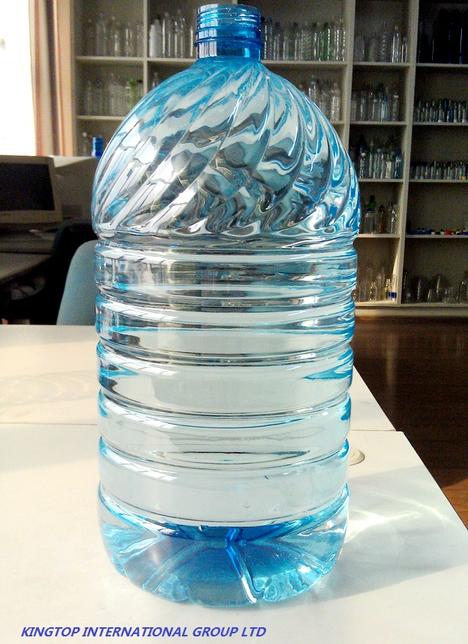

10L PET bottle
bottle mould

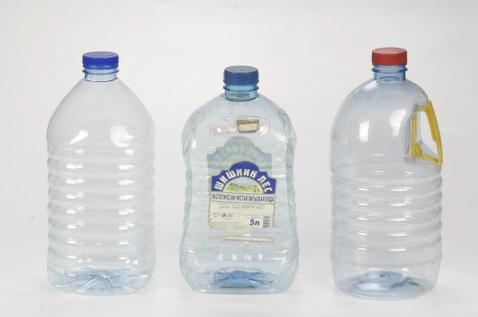

5L water bottle
10L bottle blowing machine

A short video showing a set of CM-9B under test run at our factory

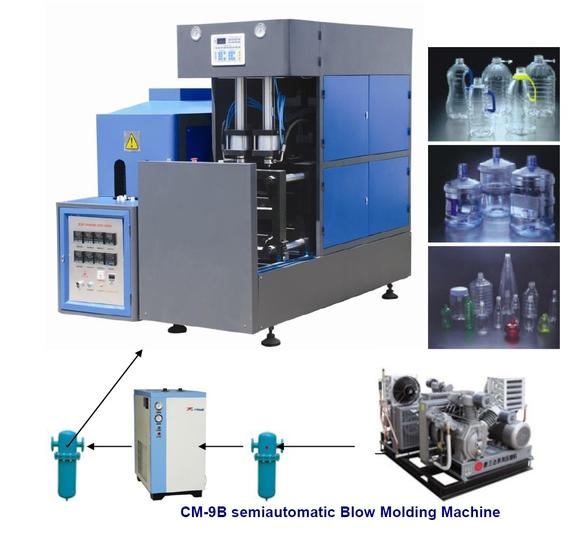

CM-9B PET BOTTLE STRETCH BLOW MOLDING MACHINE: big bottle blowing

for production of big PET bottles from 5L to 10L, semi-automatic.

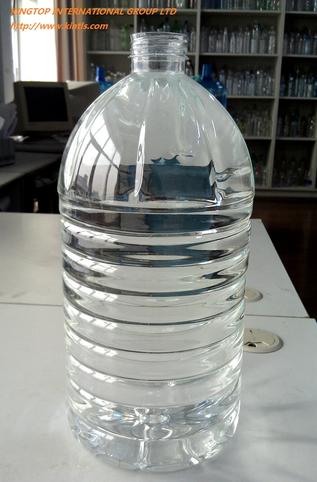

5L PET bottle

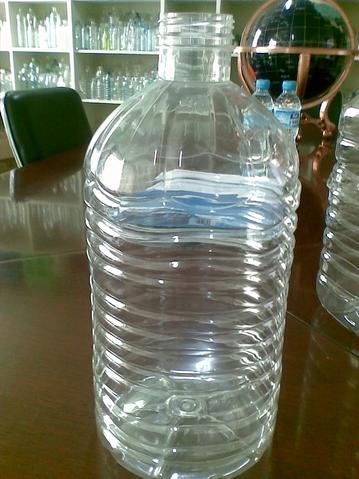

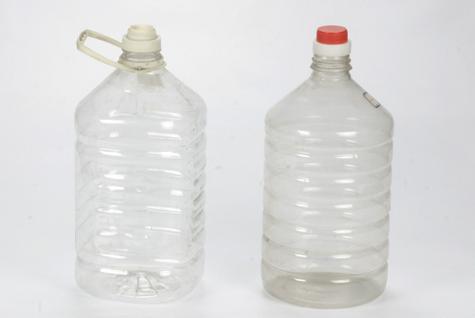

oil bottle

CM-9B semi-automatic bottle blowing machine is for producing PET plastic containers and bottles from 5L-10L. This stretch blow molding machine is widely used to produce the carbonated bottle, mineral water, pesticide bottle, oil bottle, cosmetics bottles, wide-mouth bottle etc.


● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi- auto mode.
● The machine is compact in size with low investment, easy and safe to be operated by one person.
